29-1129
Quality: I |
SiC
Moissanite-3C, syn |
CAS Number: 409-21-2
Volume (Å3): 82.819
Dcalc: 3.216 Dm:
Melting point: |
Ref: Bind, J., Penn State Univ., University Park,
PA, USA. ICDD Grant-in-Aid(1977).
Comment: Additional Patterns: To replace 00-001-1119. See PDF 01-073-1708,
01-075-0254, 01-073-1665 and 01-074-2307. Color: Greenish yellow. General
Comments: Described by Regis, A., Sand, L., Bull. Geol. Soc. Am., 69 1633
(1958). Sample Source or Locality: Specimen from PPG Industries, Inc., Submicron
SiC - lot no. 373-652. Unit Cell Data Source: Powder Diffraction. |
Sys: Cubic
Lattice: F
S.G.: F43m (216)
Z: 4
Cell Parameters (Å):
a=4.3589
α=90° |
b=4.3589
β=90° |
c=4.3589
γ=90° |
|

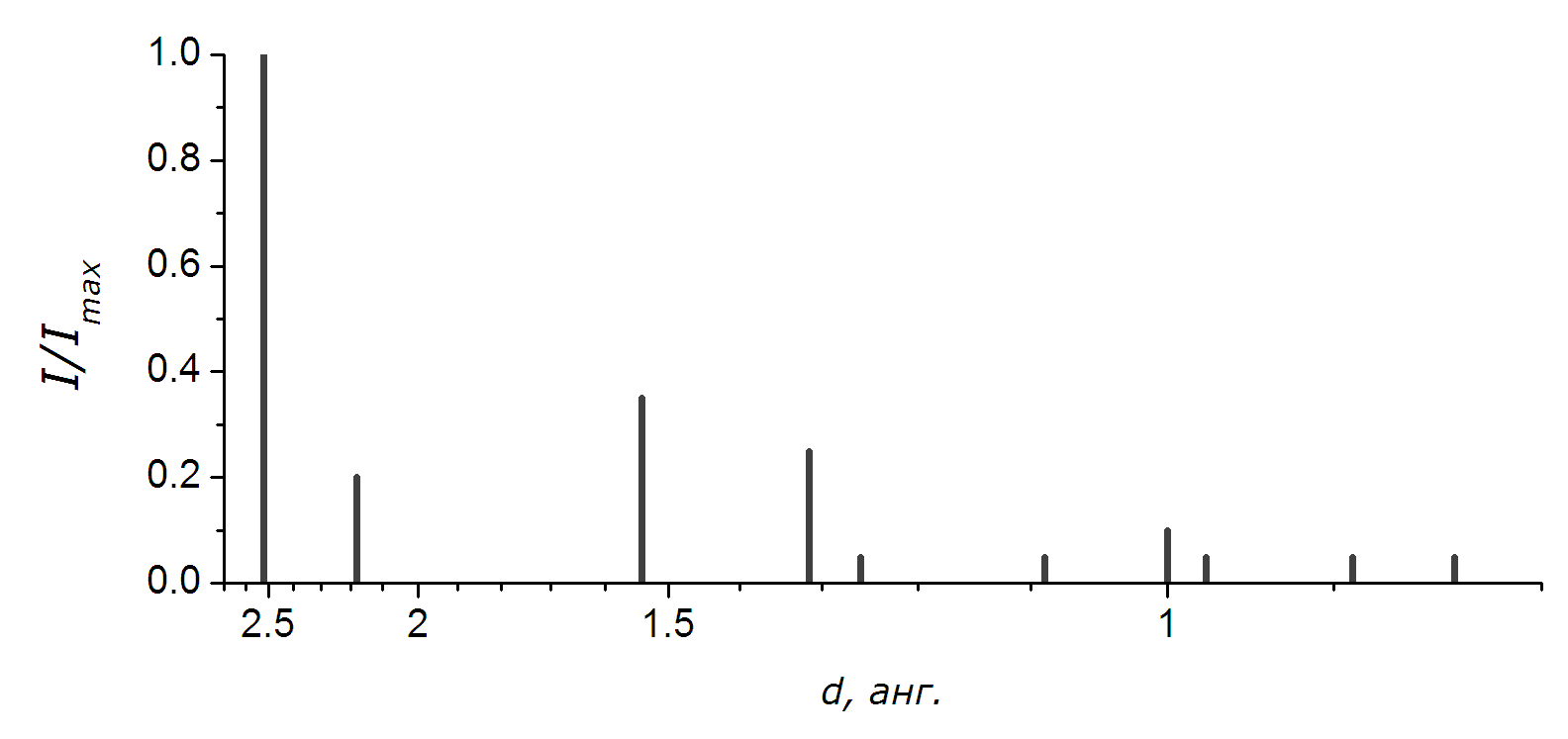

| d, Å |
I/Imax, % |
(HKL) |
2.520
2.180
1.541
1.314
1.258
1.089
1.000
0.975
0.890
0.839 |
100.0
20.0
35.0
25.0
5.0
5.0
10.0
5.0
5.0
5.0 |
111
200
220
311
222
400
331
420
422
511 |
|
|
Rad:CuKα
λ: 1.54178
I/Icor:
|
Исходные данные
No: 00-029-1129
Name: Moissanite-3C, syn
Chemical Formula: Si C
Formula: C Si
Z value: 4
Space Group: F-43m(216)
Cell: 4.3589 4.3589 4.3589 90.000 90.000 90.000
Volume: 82.819
Crystal System: Cubic
Quality: I
RIR(I/Ic): ---
Subfile: Inorganic, Mineral, Alloy&Metal, Common Phase, Educational Pattern, Forensic
---------------- Experiment
Radiation: CuKa lambda: 1.54178
Reference: Bind, J., Penn State Univ., University Park, PA, USA. ICDD Grant-in-Aid(1977).
CAS: 409-21-2
---------------- Physical
Dcalc: 3.216
---------------- Comment
Additional Patterns: To replace 00-001-1119. See PDF 01-073-1708, 01-075-0254, 01-073-1665 and 01-074-2307. Color: Greenish yellow. General Comments: Described by Regis, A., Sand, L., Bull. Geol. Soc. Am., 69 1633 (1958). Sample Source or Locality: Specimen from PPG Industries, Inc., Submicron SiC - lot no. 373-652. Unit Cell Data Source: Powder Diffraction.
---------------- d-I list (2theta are calculated with wavelength=1.54059)
2theta range: 35.60 - 133.40
2theta d I (hkl)
35.60 2.520 100.0 (1,1,1)
41.38 2.180 20.0 (2,0,0)
59.98 1.541 35.0 (2,2,0)
71.78 1.314 25.0 (3,1,1)
75.49 1.258 5.0 (2,2,2)
90.01 1.089 5.0 (4,0,0)
100.77 1.000 10.0 (3,3,1)
104.41 0.975 5.0 (4,2,0)
119.99 0.890 5.0 (4,2,2)
133.40 0.839 5.0 (5,1,1)
